Product Features

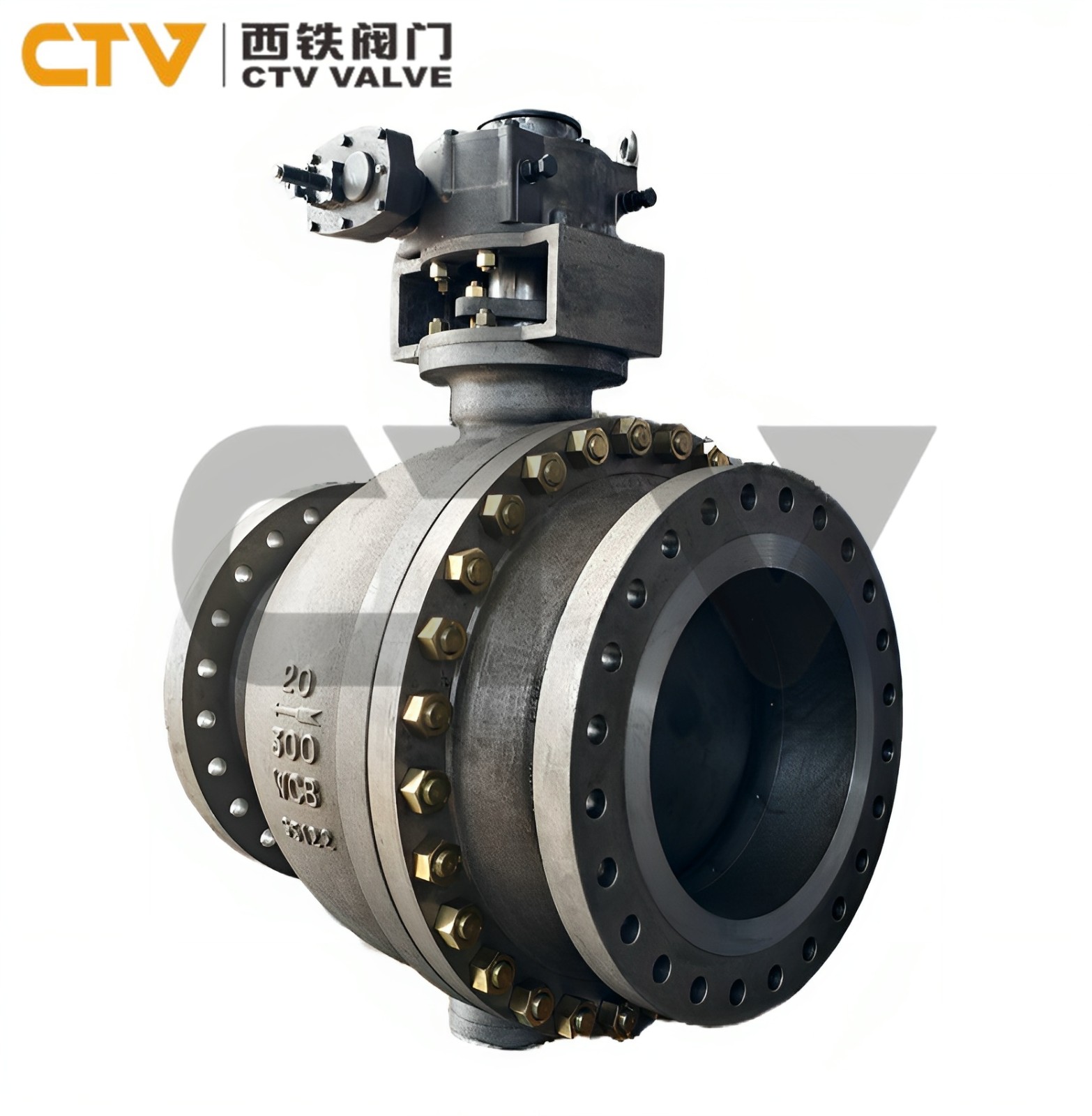

This eccentric fixed ball valve adds a radial eccentricity to the ordinary fixed ball valve through subtle design and processing, allowing the ball to tighten the valve seat to form a sealing pressure to ensure good sealing when closing, and quickly leave the valve seat when opening, rotating the valve seat to open the process does not produce friction so as to prolong the service life of the valve; this valve adopts a full bore design, strong flow capacity and small flow resistance.

Nominal diameter DN: 20"

Nominal pressure Class: Class300

Valve body material: WCB
